Lifesurce Oxygen Concentrator 10L

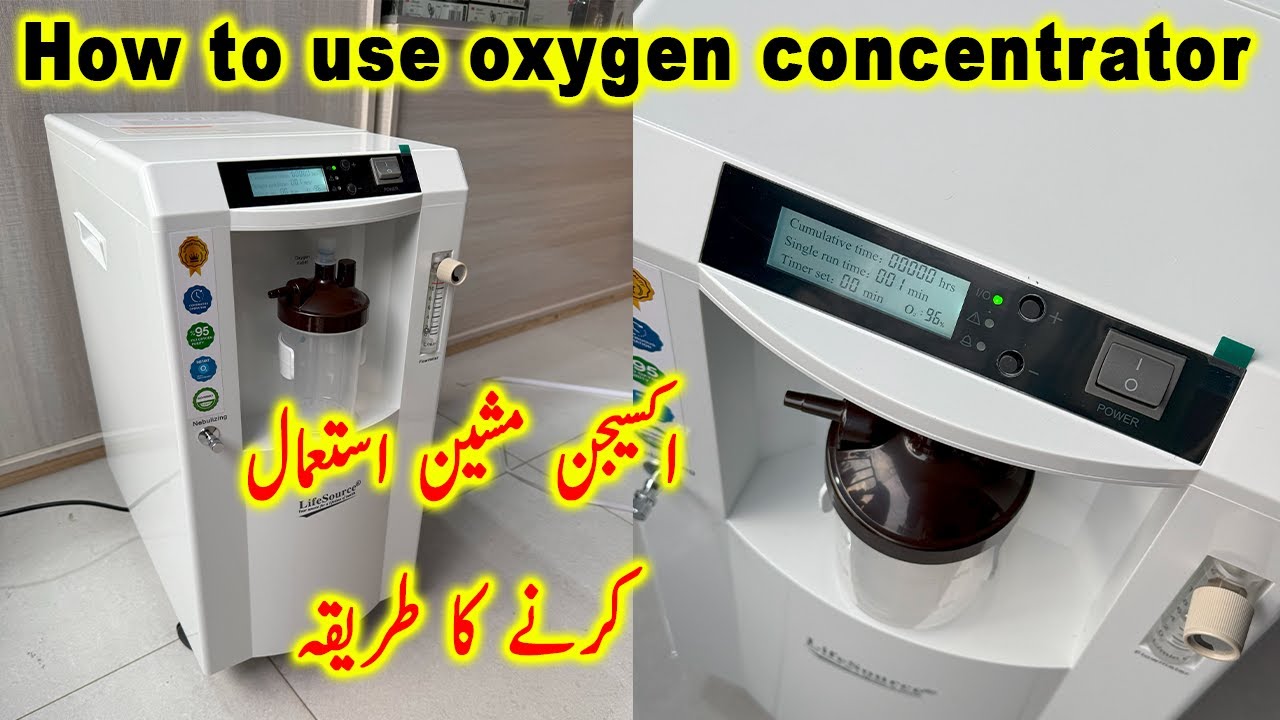

Lifesurce Oxygen Concentrator LS-7F-10B With Nebulizer and Purity Meter

The oxygen concentrator is intended for individual use in the home. It is an electronically operated device that separates oxygen from room air. It provides a high concentration of oxygen directly to you through a nasal cannula. Clinical studies have documented that oxygen concentrators are therapeutically equivalent to other types of oxygen delivery systems.
This user’s manual will tell you about your concentrator and will serve as a reference as you use your concentrator.

• Complete plastic out shell, safe and reliable.
• Timing accumulates function and shows total working hours through the display screen.
• Timing turns off the function using convenience.
• Exceed press safety valve helping safety ensure.
• Power loss alarm function, pressure and cycle failure alarm function, compressor failure alarm function.
• Low oxygen concentration alarm function.
• Compressor with hot protection which ensures the safety of the compressor and concentrator.
• Manual and nasal oxygen cannula etc accessories can be put in the store box of concentrator.
• The purity level of the oxygen concentrator is 93% ±3%
• Output pressure:40kpa-70kpa
• Flow Range: 1~10L/min
• Oxygen Concentration: %87~%95,5
• Maximum Outlet Pressure: 20kPa~50kPa (2.9psi~7.25psi)
• Pressure Relief Mechanism Operational at: 250kPa±25kPa (36.25psi±3.63psi)
• Altitude: Up to 1828 meters (6000 ft) above sea level without degradation of concentration levels. From 1828 meters (6000 ft) to 4000 meters (13129 ft) below 87% efficiency.
• Sound Level: ≤59dB (A)
• Minimum Operating Time: 30minutes
• Power Supply: -220V ±22V, 50Hz ± 1Hz
• Input Power: ≤700VA
• Weight: 27kg (60 lbs) H55.6xW28.5xD47cm
• Electric classification: class II equipment, type B applied part
• Work system: work continuously.
• Keep it far from the flammable and explosive gas area.
  Normal Operation Condition
• Temperature range: 10°C~35°C (50°F~95°F)
• Relative humidity: 20%~60%
• Atmosphere pressure: 86kPa~106kPa (12.47psi~15.37psi)
