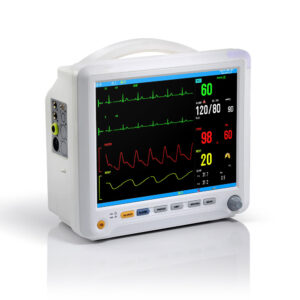

Multi Parameter Patient Monitor PM12D LeMedical

Multi-Parameter Patient Monitor PM12D LeMedical

• Features:
• 12.1-inch color display with 800*600 resolution.
• Three Working Modes: Monitoring, Surgery, and Diagnosis
• Simple and friendly operating display
• Multi-display modes suitable for different applications: Standard Interface, Large font, ECG Standard Full Display, OXY, Trend Table, BP
• Built-in rechargeable Lithium battery up to 3 hours of continuous work
• VGA output for external display


  Technical Specifications

  Lead Mode	5 Leads (I, II, III, AVR, AVL, AVF, V)
  Gain	2.5mm/mV, 5.0mm/mV, 10mm/mV, 20mm/mV
  Heart Rate	15-300 BPM (Adult); 15-350 BPM (Neonatal)
  Resolution	1 BPM
  Accuracy	+1%
  Sensitivity	>200 uV(Peak to peak)
  ST measurement range	-2.0 – +2.0 mV
  Accuracy	-0.8mV-+0.8mV: +0.02mV or +10%, which is greater
  Sweep speed	12.5 mm/s, 25mm/s, 50mm/s
  Bandwidth	Diagnostic: 0.05-130 Hz, Monitor: 0.5-40 Hz, Surgery: 1-20 Hz

  NIBP

  Method	Oscillometry
  Measure mode	Manual, Auto, STAT
  Unit	mmHg, kPa
  Measure and alarm range	0 – 50°C
  AduIt Mode	SYS    40 – 280 mmHg DIA    10 – 225 mmHgMEAN 20 – 240 mmHg
  Pediatric Mode	SYS   40 – 220 mmHgDIA    10 – 160 mmHg MEAN 20 – 170 mmHg
  Neonatal Mode	SYS    40 – 135 mmHgDIA     10 – 100 mmHgMEAN 20 – 110 mmHg
  Resolution	1mmHg
  Accuracy	+5mmHg

  TEMP

  Measure and Alarm Range	0 – 50°C
  Resolution	0.1°C
  Accuracy	+0.1°C

  RESP

  Method	Impedance between RA-LL or RALA
  Measurement Range	Adult: 10 – 120 BrPMNeonatal / Pediatric: 7 – 150 BrPM
  Resolution	1 BrPM
  Accuracy	+2 BrPM

  Standard Configuration

  Main Unit	1
  5-lead ECG cable	1
  Disposable ECG Electrode	5
  Adult Spo2 probe	1
  Adult NIBP cuff	1
  NIBP extension tube	1
  Temperature probe	1
  Power Cable	1
  User Manual(CD)	1
  Fuse	3

  SPO2

  Measuring Range	0 – 100 %
  Resolution	1%
  Accuracy	70% – 100% (+2 %)
  Pulse Rate	20-250 BPM
  Resolution	1 BPM
  Accuracy	+3 BPM

  Standard Parameters

  • ECG
  • RESP
  • TEMP
  • NIBP
  • SPO2
  • PR

  Optinal Parameters

  • Recorder ( Printer)
  • Central monitoring system
  • Dual IBP
  • Etco2
  • 12-lead ECG;
  • Nellcor SpO2;
  • Sun Tech NIBP
