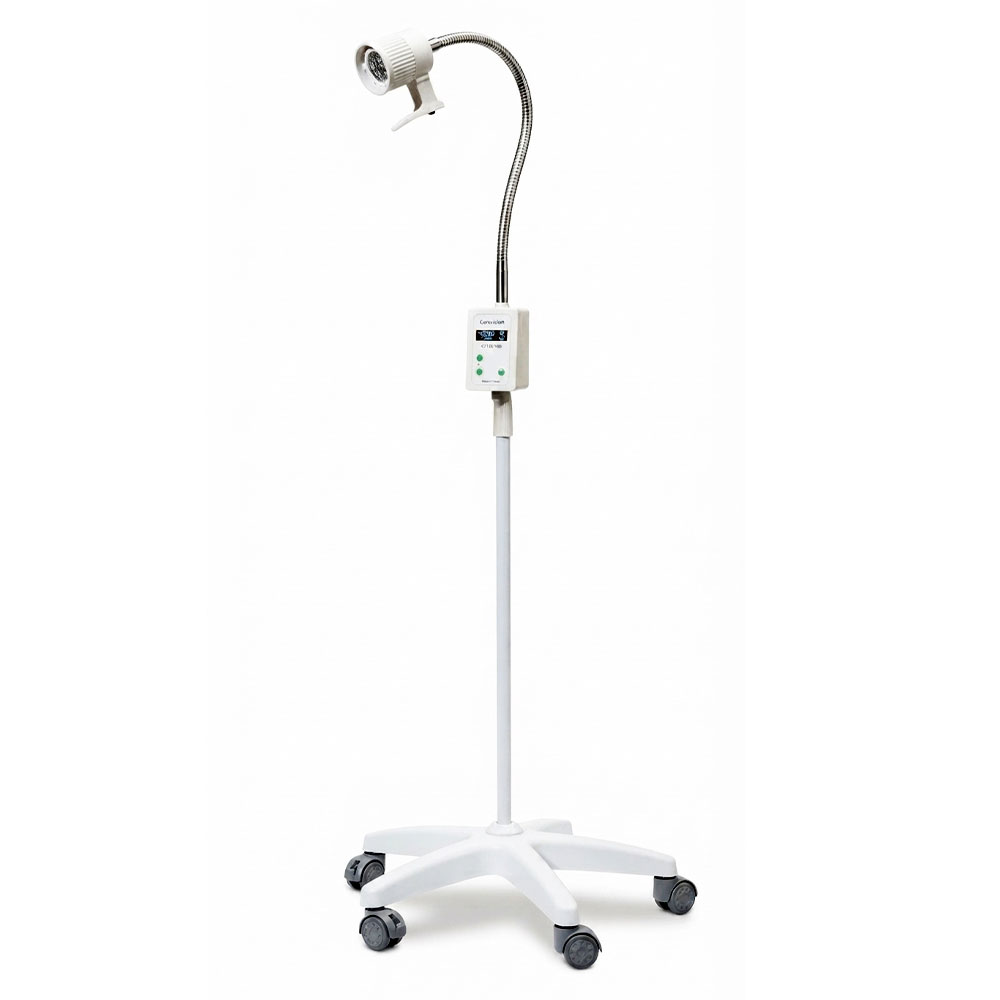

Carevision Examination Lamp CV-LED1000

Carevision Examination Lamp CV-LED1000

The CV LED 1000 is a high-performance, compact LED examination lamp engineered for outpatient clinics, minor procedure rooms, general practitioner chambers, and specialized medical examinations. Utilizing advanced solid-state LED architecture, it delivers concentrated, shadow-controlled illumination with minimal thermal emission.

Mechanical & Ergonomic Design

• Mounting Options: Highly versatile configurations available, including a mobile 5-caster floor stand with a stable weighted base, wall-bracket mounting, or table/rail clamps depending on spatial requirements.
• Flexibility: Balanced, flexible gooseneck or articulated spring-arm architecture allowing smooth 360° rotation and precise positioning without drift.
• Hygiene & Maintenance: Seamless, powder-coated or anodized metal housing designed for effortless sanitization and compliance with stringent clinical infection-control protocols.

Product Features

• Mini lamp holder with a diameter of 75 mm.
• Illumination using Osram imported from Germany with stable light and long working time.
• Flexible arm can be positioned freely and is easy to move.
• Even bright white light.
• ENT, gynecology, and obstetrics department outpatient department examination.

Used as assisted illumination in the operating room.

Technical Specifications

• MODEL: CV-LED-1000
• BULB: LED
• Supply Voltage: AC110-240V
• POWER: 9W
• Color temperature: 6500K
• Illumination (50cm): 40,000LUX
• Brightness adjust: Available
• Height adjust: Available
  Lifetime: 50,000h
• N.W/G.W: 4.5KG/5.5KG

Primary Medical Uses

• General Physical Examinations: Used by general practitioners and specialists for routine patient evaluations, allowing clear visibility of skin textures, mucosal membranes, and deep anatomical sites.
• Minor Surgical & Clinical Procedures: Provides adequate concentrated lighting for minor outpatient interventions, such as wound suturing, dressing changes, tissue biopsies, and catheterizations.

Specialized Clinical Fields

• Gynecology & Obstetrics: Used for localized internal and external examinations.
• Dermatology: Helps in closely inspecting skin lesions, rashes, and pigment changes due to the cool, true-to-nature LED color rendering.
• ENT (Ear, Nose, and Throat): Directs bright light into narrow cavities like the ear canal and oral cavity.
• Emergency & Trauma Rooms: Rapidly illuminates trauma sites or localized injuries during urgent assessments.
