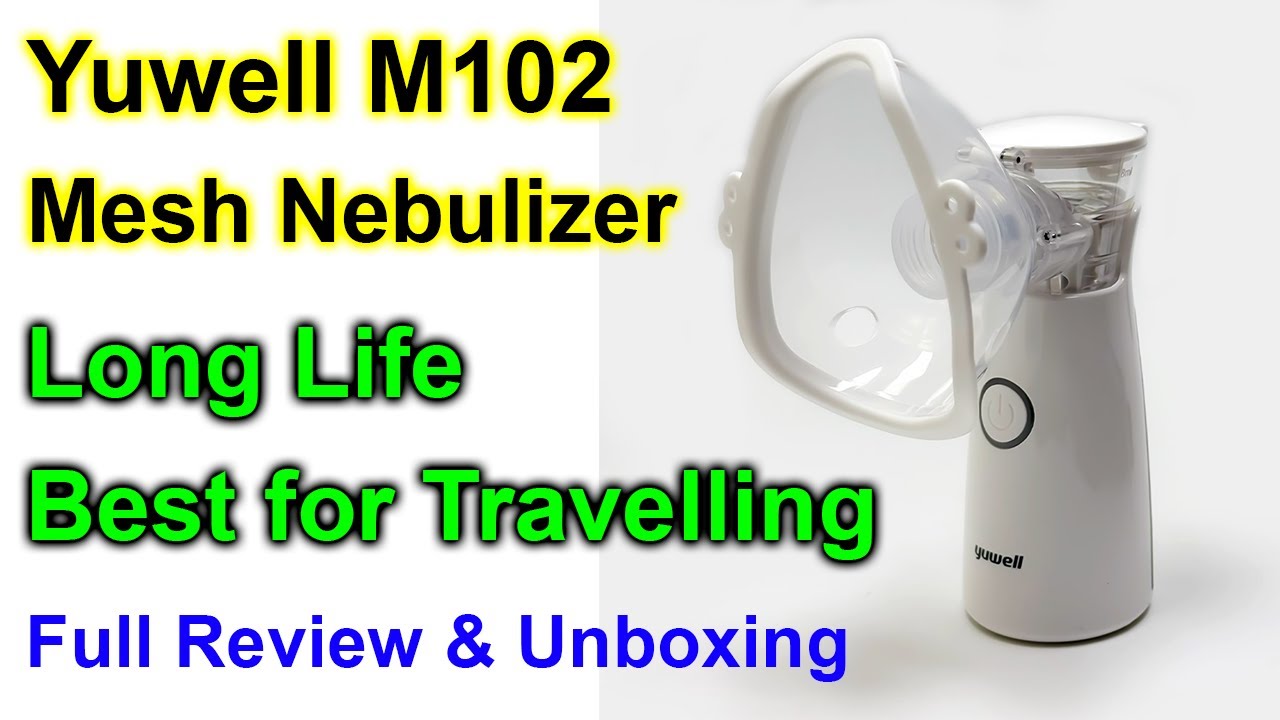

Yuwell Mesh Nebulizer M-102

Yuwell Mesh Nebulizer M102

The Yuwell Portable Mesh Nebulizer M102 is a compact, medical-grade ultrasonic vibrating mesh nebulizer designed for quiet, efficient delivery of respiratory medications.

Technical Specifications

• Technology: Vibrating stainless steel mesh (approx. 112 kHz frequency).
• Particle Size (MMAD): ~3.5 µm to 3.7 µm for deep pulmonary deposition.
• Nebulization Rate: 0.2 mL min.
• Medication Capacity: 8 mL maximum capacity with low residual volume 0.25 mL
• Operating Noise: Very quiet operation, 45 dB to 50
• Power Options: Dual power capability via 2x AA batteries or Micro-USB / DC cable connection.
• Weight: Lightweight unit at ~105 grams (excluding batteries).

Key Features & Operational Benefits

• Ultra-Quiet Performance: Suitable for infants, children during sleep, or discreet travel use.
• Multi-Angle Inhalation: Mesh design allows nebulization even when tilted, facilitating use in lying down positions.
• Detachable Cup Mechanism: Features a one-touch detach button for quick cleaning and sterilization.
• LED Status Indicators: Visual cues for active operation, low battery warning, and empty medication chamber detection.

Package Box Contents

• Yuwell M102 Main Unit
• Detachable Medication Cup
• Adult PVC/PP Mask
• Pediatric PVC/PP Mask
• Mouthpiece
• USB Power Cable
• Carrying Pouch
